Clinical wound follow-up

Record the wound, preserve the context.

WoundTruth is an iPhone tool for clinicians to capture AR video, depth information, patient records, notes, and frame-level measurements during wound follow-up.

Read tutorial Get support Read privacy policy

创面随访辅助工具

记录创面，也保留空间上下文。

创视迹面向临床创面随访，帮助医生在 iPhone 上采集 AR 录像、深度信息、患者档案、备注，并对任意帧进行长度、曲线、面积和剖面测量。

查看教程 查看支持 隐私政策

Tutorial

How to use WoundTruth.

使用教程

如何使用创视迹。

Start with the disclaimer, then follow the patient, recording, playback, measurement, notes, and archive workflows below.

请先阅读免责声明，然后按病人档案、录像、回看测量、备注和导入导出流程操作。

01

Disclaimer

WoundTruth is a wound documentation and measurement aid for clinicians. It does not provide diagnosis, treatment recommendations, treatment decisions, or automated medical conclusions.

All measurement results are for clinical reference only. Accuracy may be affected by device depth capability, camera distance, lighting, reflection, occlusion, motion blur, wound boundary selection, and whether ruler points are placed on the same physical plane as the measured wound area. Qualified healthcare professionals must use their own clinical judgment.

02

Device and data requirements

Recording uses ARKit world tracking and depth data. A device with ARKit support and scene depth/LiDAR capability is recommended. Unsupported devices show an in-app message.

The app is local-first. Patient records, frames, depth maps, camera metadata, measurements, notes, timestamps, and verification hashes stay on the device unless the user exports a record package.

03

Patient profile

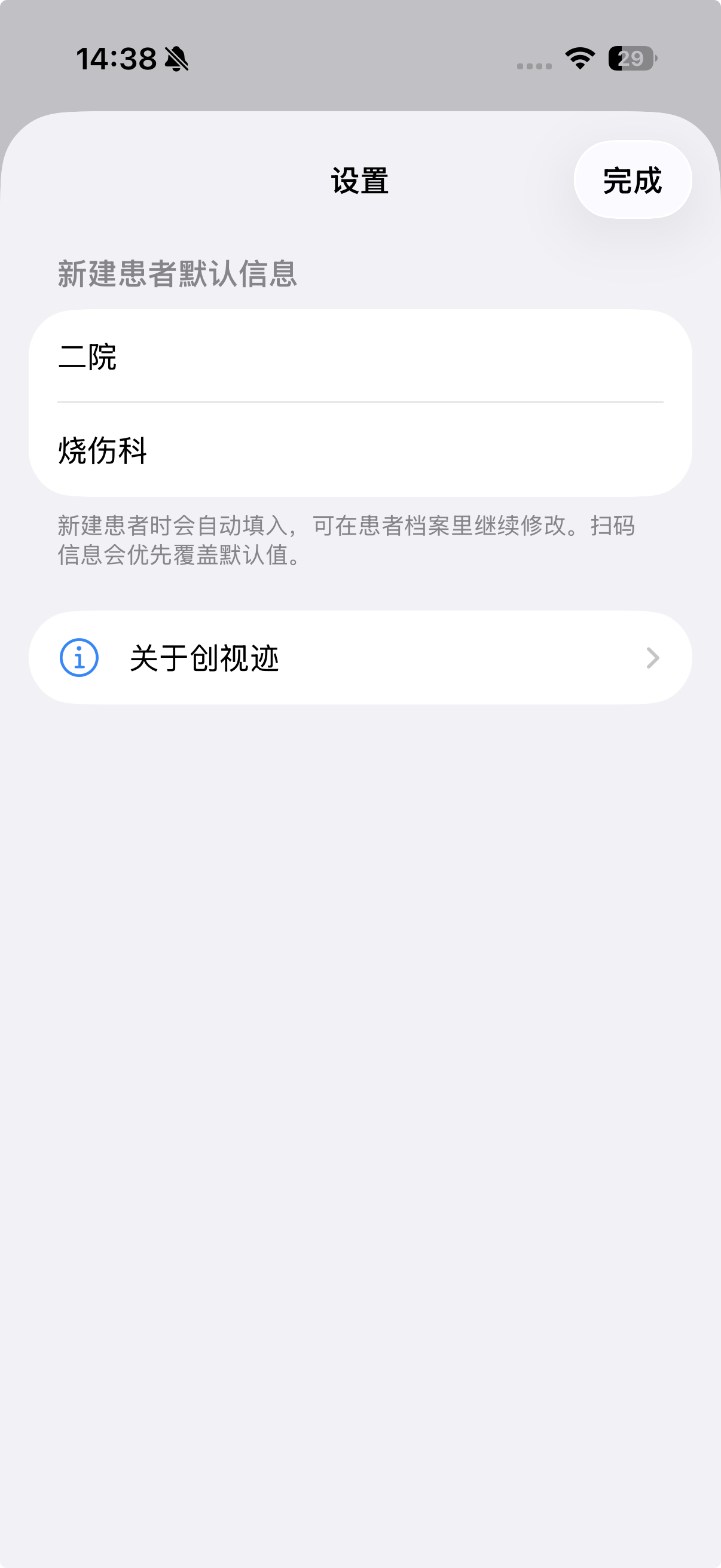

  1. Open Settings and set the default hospital and department if needed. These fields are optional.

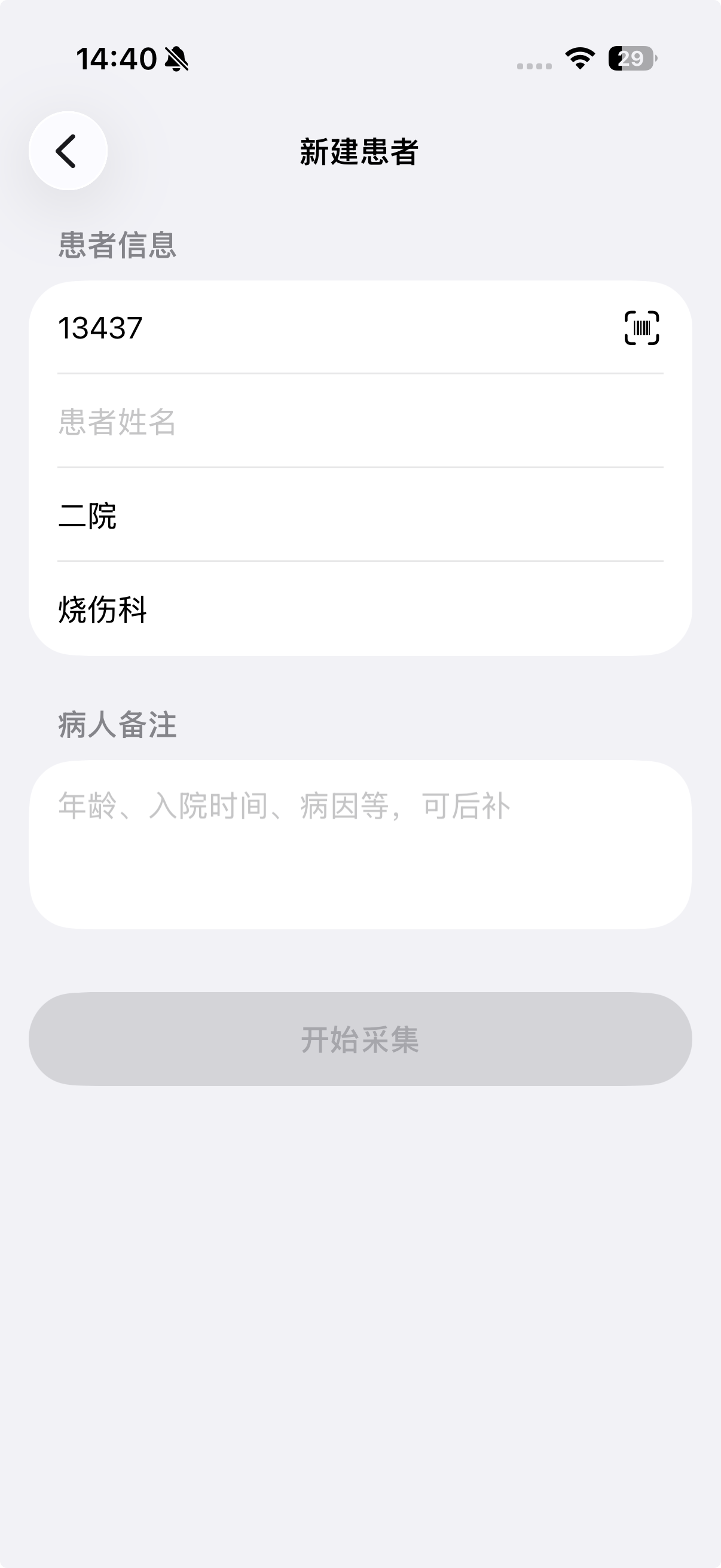

  2. Create a new patient profile from the patient list.
  3. Enter the patient name. Patient ID is optional; if it is left empty, the app generates a timestamp-based ID.
  4. Fill optional hospital, department, and patient notes.

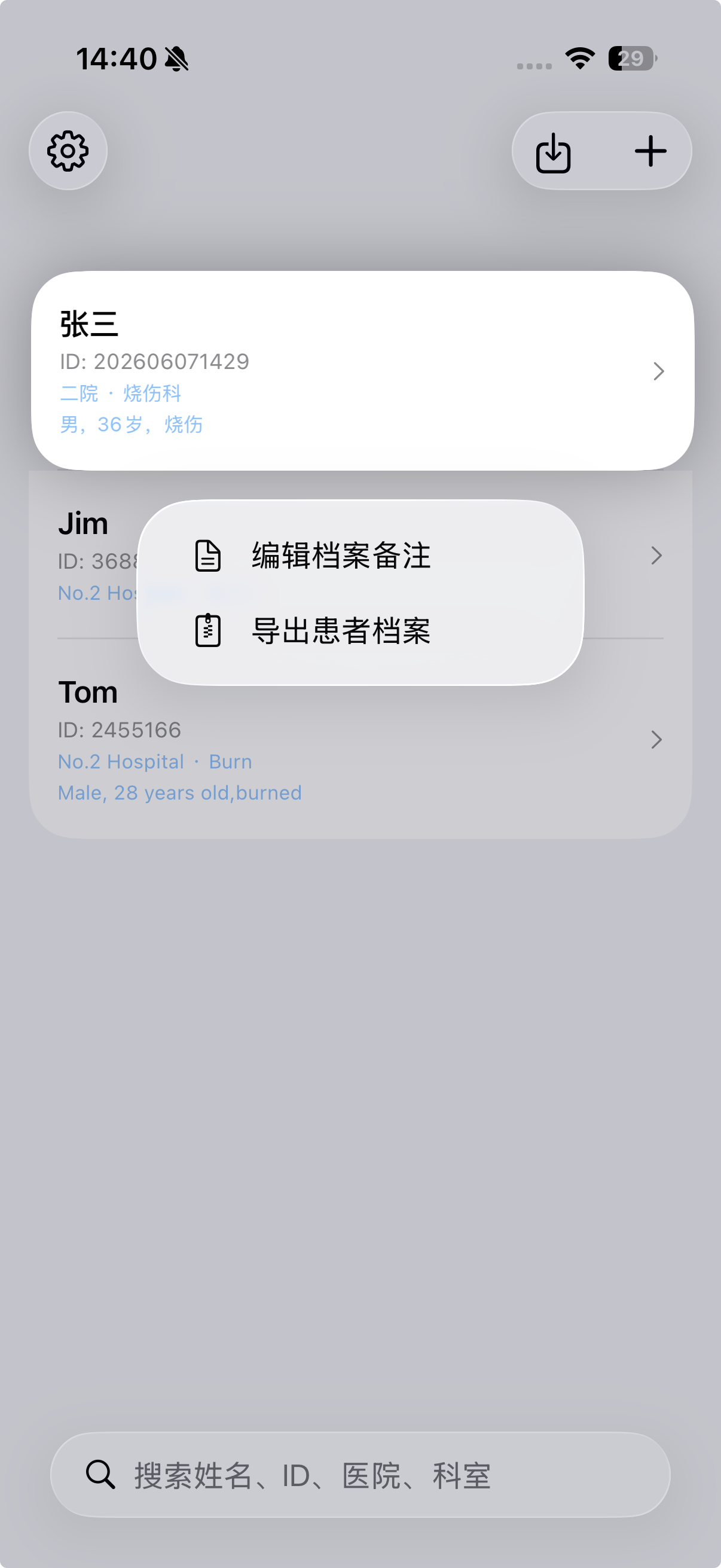

  5. Long-press a patient item to edit patient information later.
04

Recording

  1. Open a patient profile and start a new recording.

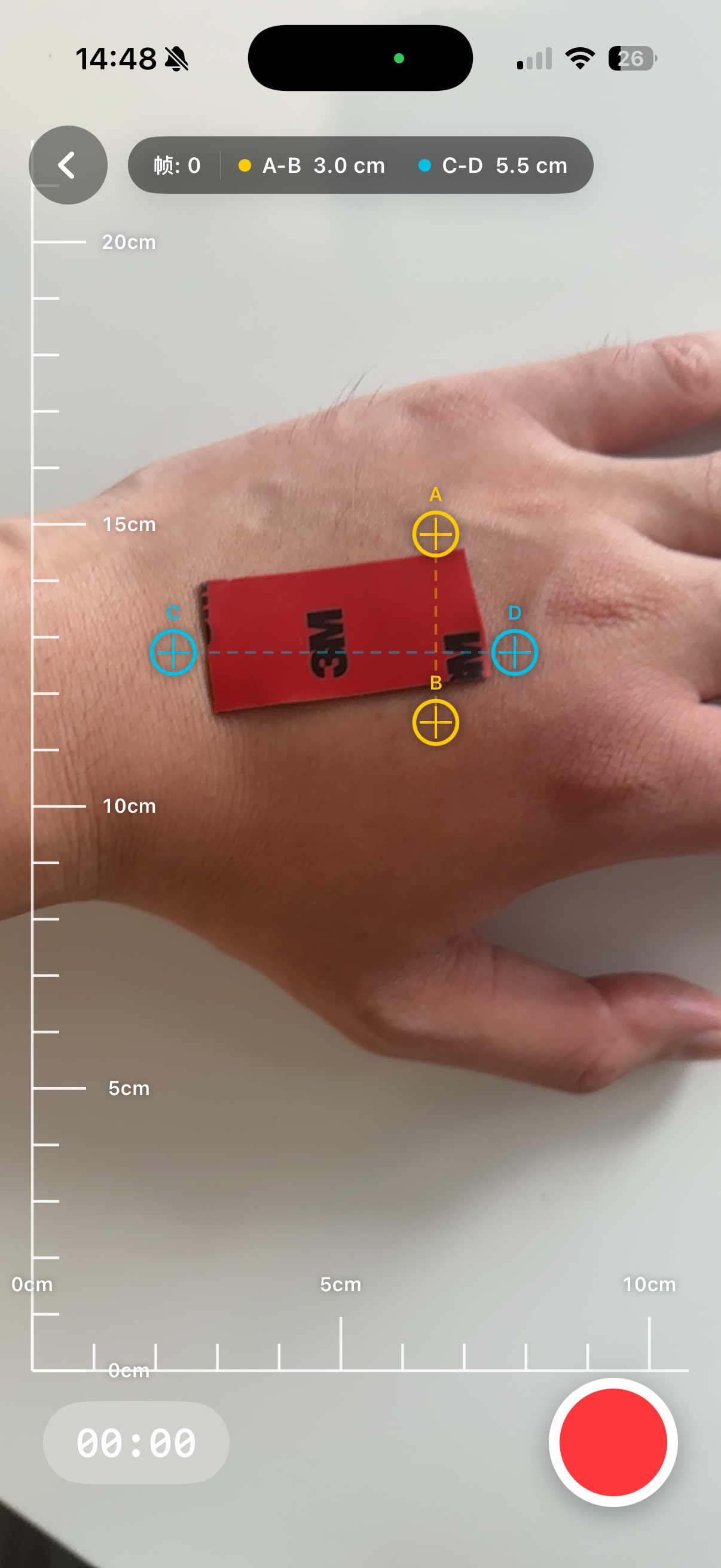

  2. Drag ruler points A-B and C-D to the reference area before recording.
  3. Place A-B and C-D on the same physical plane as the wound or measured object, for example on the same arm surface.
  4. The A-B and C-D lengths are used to display the two-axis ruler scale.
  5. Tap the record button and keep the camera stable. Avoid fast motion, poor lighting, strong reflection, and occlusion.
05

Playback and measurements

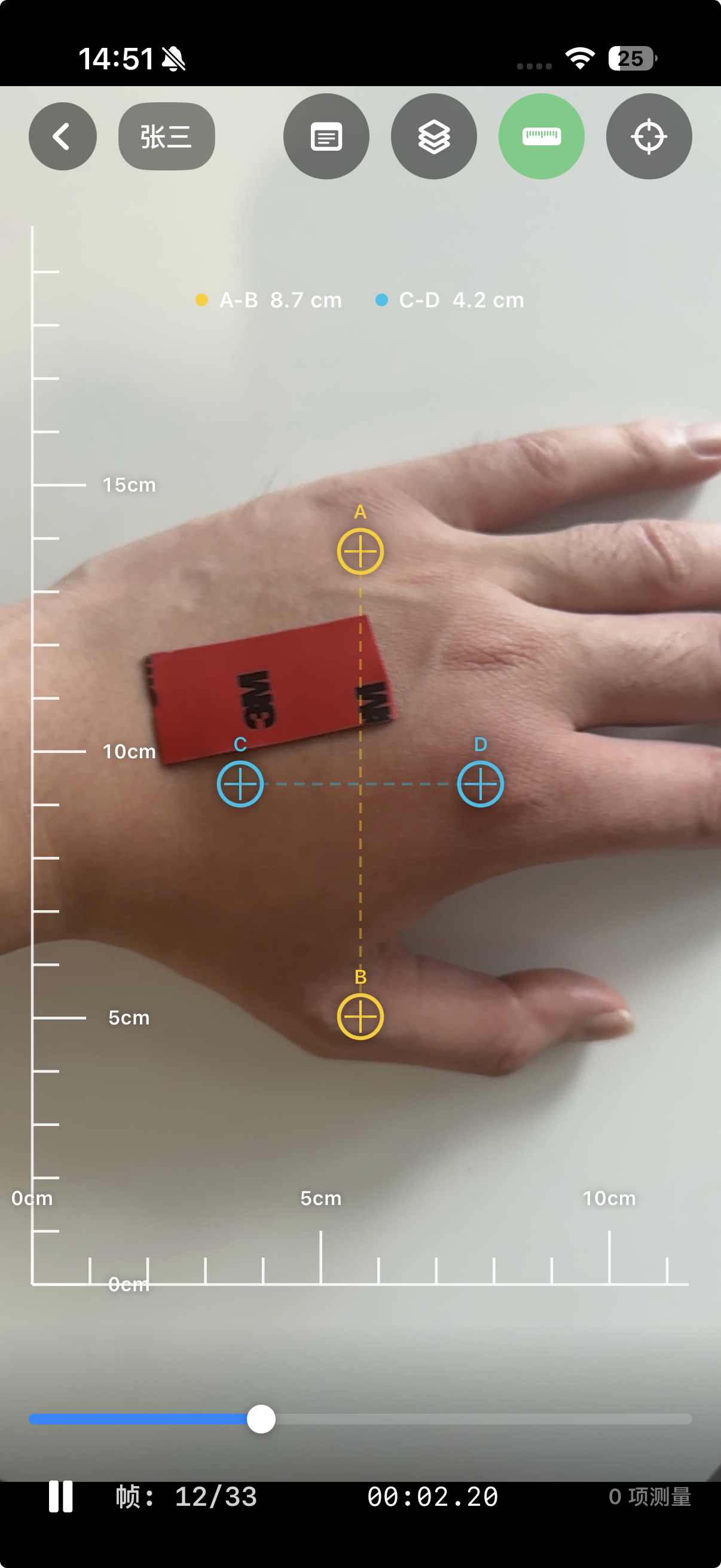

  1. Open a recorded video and scrub the timeline to select a frame.
  2. Use the ruler overlay to understand the approximate scale of the current frame.
  3. Tap the measurement button and choose Length, Curve, Area, or Depth/Profile.

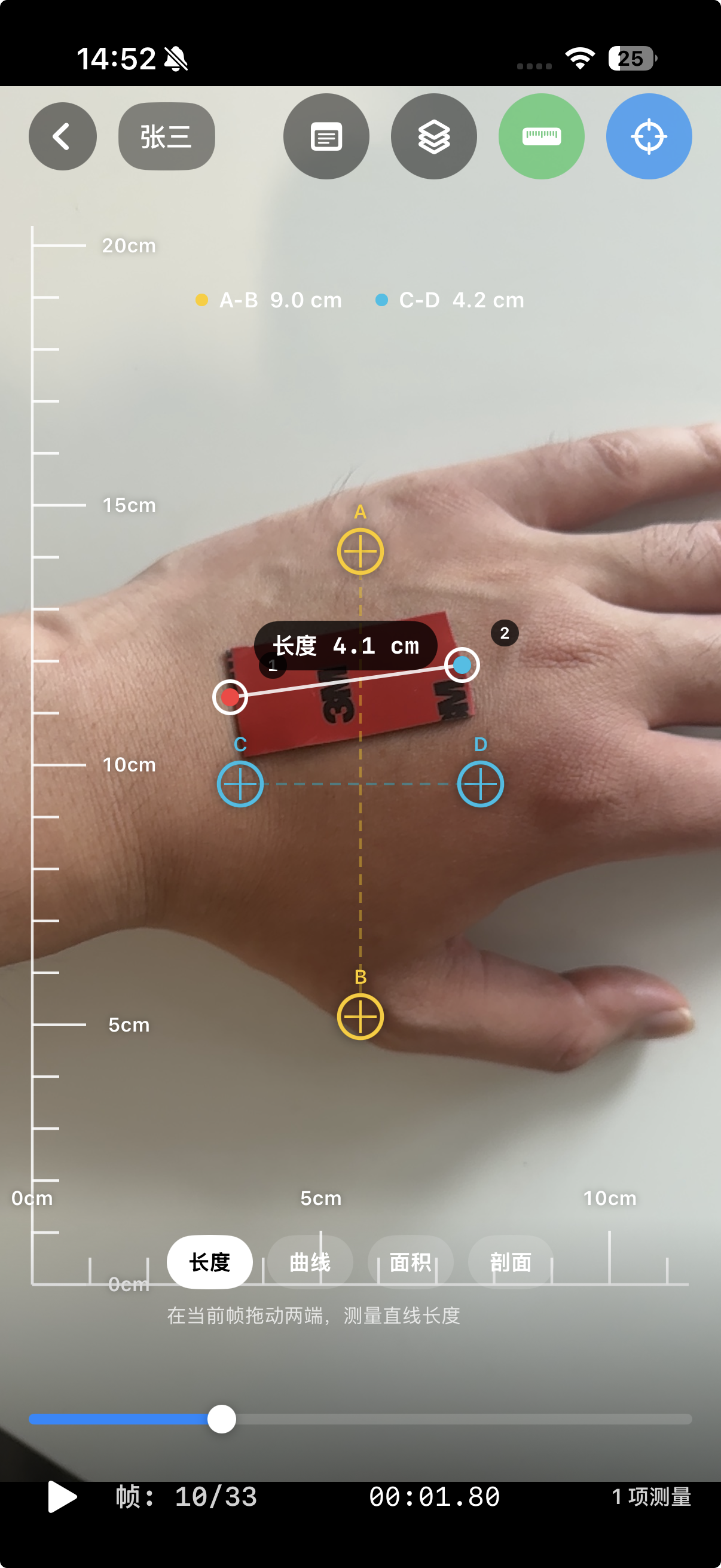

  4. Length measures the straight distance between two endpoints on the current frame.

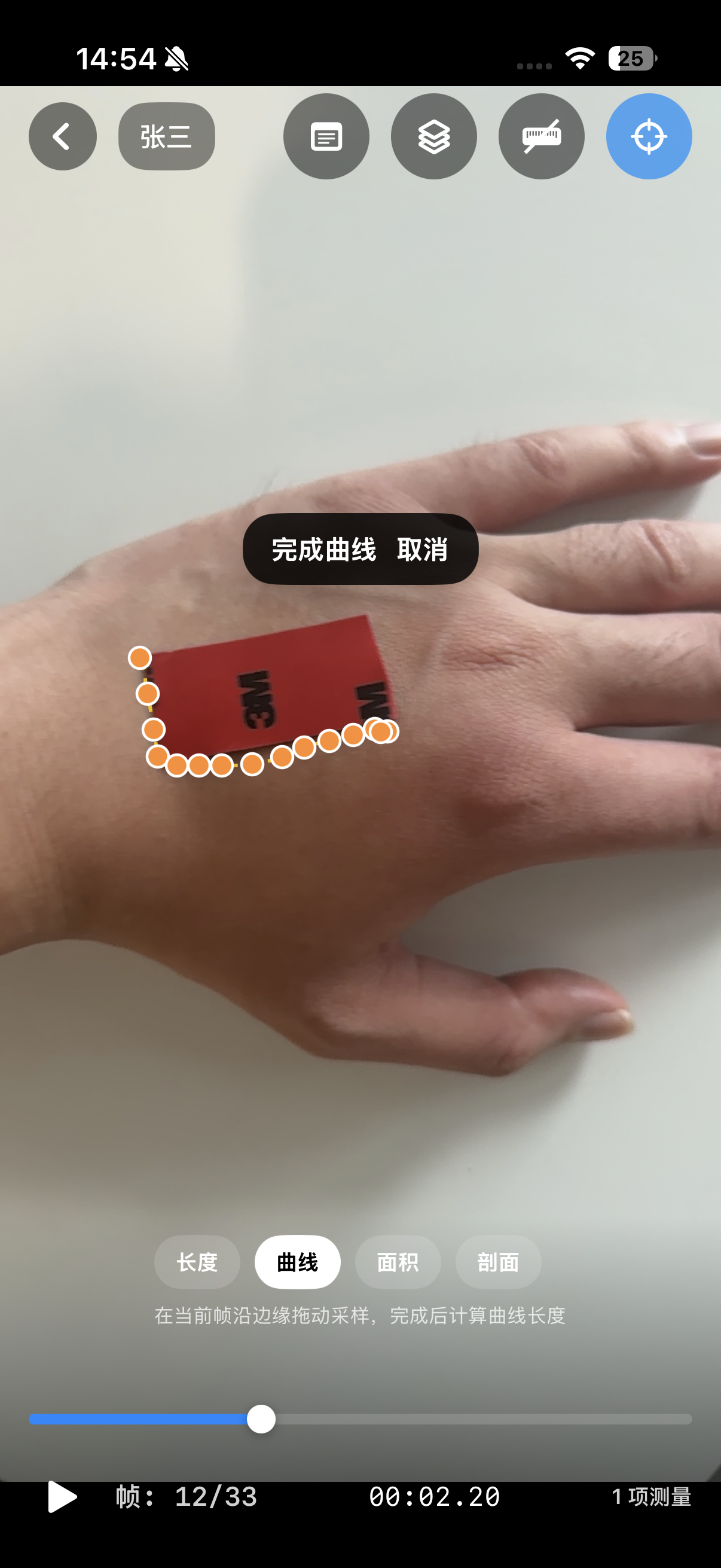

  5. Curve follows a curved wound edge; tap Finish to calculate the curve length.

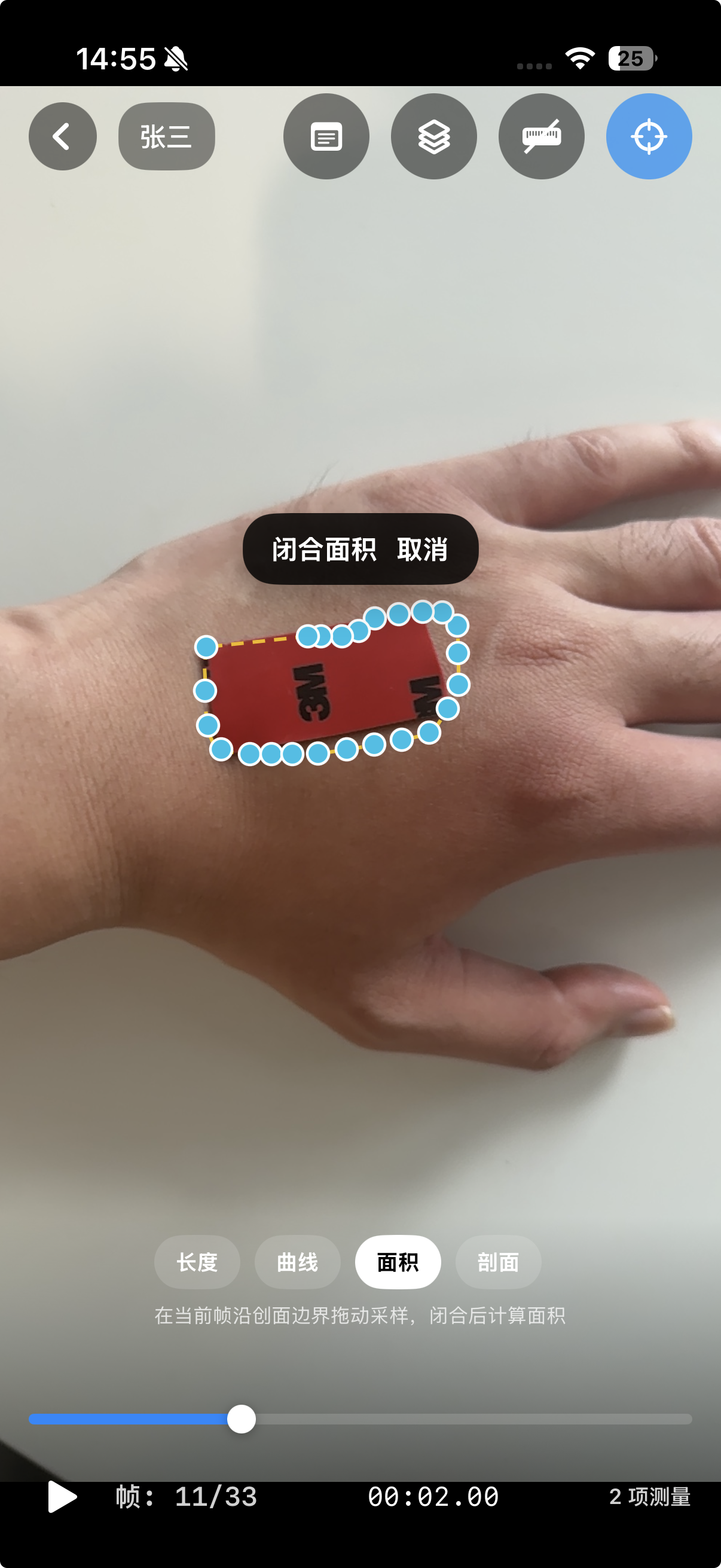

  6. Area follows the wound boundary; tap Finish to calculate the enclosed area.

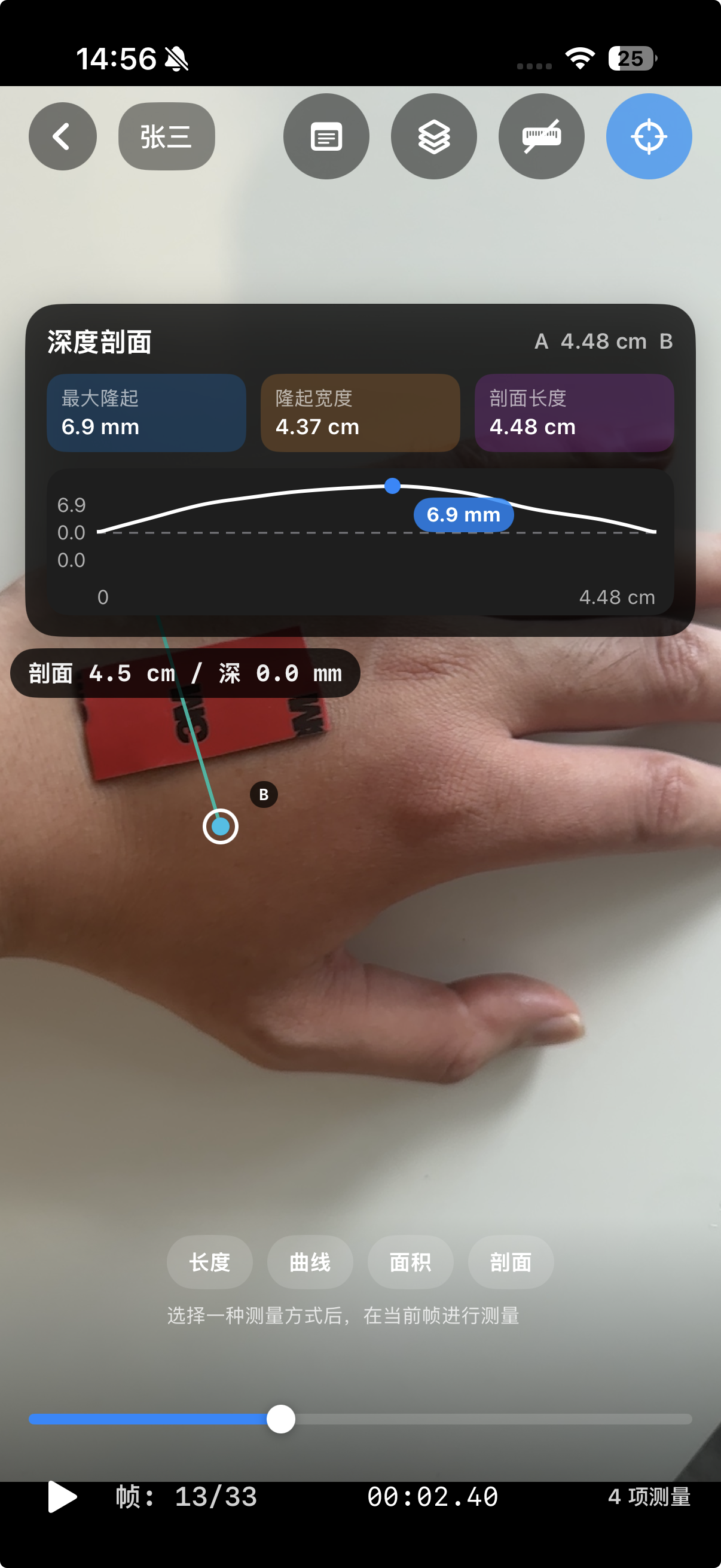

  7. Depth/Profile places a line across the target area to view surface variation.
  8. After a measurement is completed, add a name or note if needed.

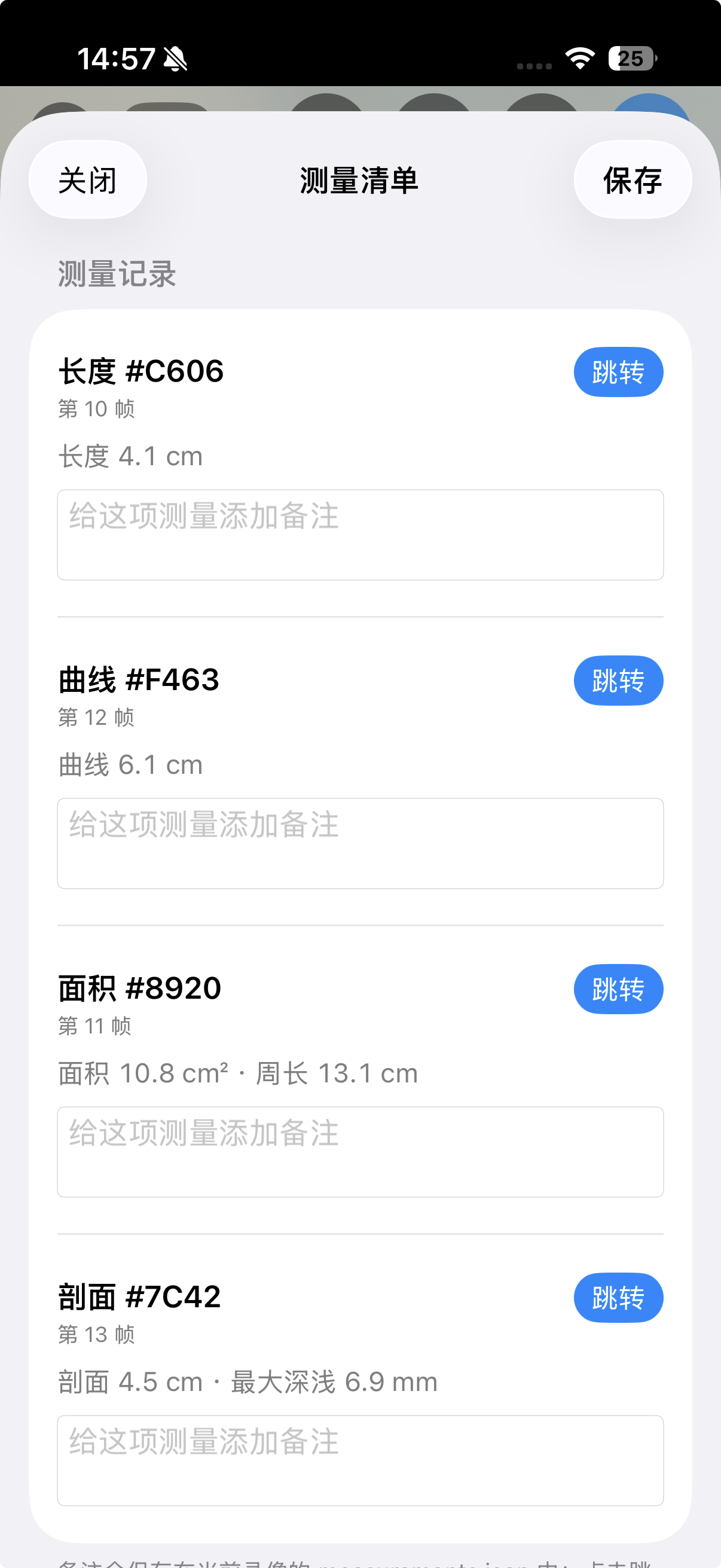

  9. Tap the measurement list in the lower-right corner to review all measurements and jump to the frame where a measurement was created.
06

Depth overlay, capture time, and hash verification

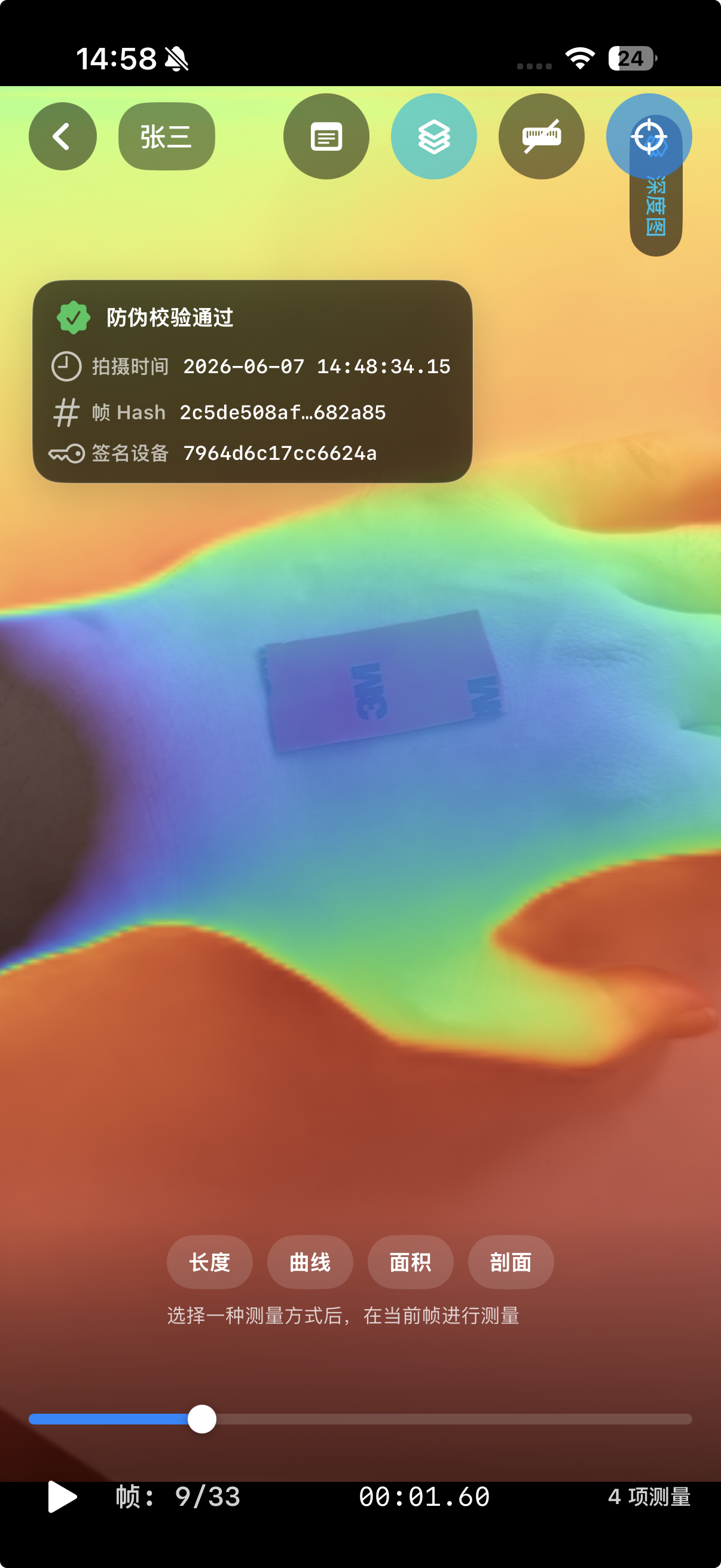

In playback, the user can toggle depth overlay, capture time, and HASH verification information. The depth overlay helps reviewers understand available depth data. Capture time and HASH values help verify that exported data matches the recorded data.

07

Notes and archives

Notes can be added at the patient, recording, and measurement levels. Recording notes can describe follow-up status, for example “wound condition after the third dressing change.”

The app supports exporting and importing compatible record packages for archiving, computer transfer, or clinician consultation. Exported files may contain patient-identifiable information, so users should choose a secure destination.

01

免责声明

WoundTruth / 创视迹是面向医护人员的创面记录与测量辅助工具，不提供诊断、治疗建议、治疗决策或自动化医疗结论。

所有测量结果仅供临床参考。测量精度可能受到设备深度能力、拍摄距离、光照、反光、遮挡、运动模糊、创面边界选择，以及标尺点是否与创面位于同一物理平面等因素影响。具备资质的医护人员需要结合实际临床情况自行判断。

02

设备与数据要求

录像功能基于 ARKit 世界追踪和深度数据。建议使用支持 ARKit 与 scene depth/LiDAR 深度能力的设备。不支持的设备会在应用内显示明确提示。

应用采用本地优先设计。患者档案、图像帧、深度图、相机元数据、测量结果、备注、拍摄时间和 HASH 信息默认保存在本机；只有用户主动导出数据包时，数据才会离开设备。

03

病人档案

  1. 打开设置，如有需要，填写默认医院和默认科室。这两项不是必填项。
  2. 回到患者列表，新建病人档案。
  3. 填写患者姓名。患者 ID 不是必填项；如果留空，应用会根据当前时间戳自动生成。
  4. 可继续填写医院、科室和患者备注等可选信息。
  5. 在患者列表中长按对应患者，可以后续编辑病人信息。
04

录像

  1. 进入某个病人档案，开始新建录像。
  2. 录像前拖动 A-B、C-D 四个标尺点到指定参考位置。
  3. A-B 和 C-D 应尽量放在与创面或待测物体相同的物理平面上，例如都放在同一段胳膊表面。
  4. A-B 和 C-D 的长度会用于显示横向与纵向两个轴的标尺。
  5. 点击录像按钮后保持手机稳定，避免快速移动、光照不足、强反光和遮挡。
05

回看与测量

  1. 打开已录制的视频，拖动时间轴选择需要查看或测量的某一帧。
  2. 使用默认标尺叠加层观察当前帧的大致尺度。
  3. 点击测量按钮，选择直线、曲线、面积或深度/剖面。
  4. 直线用于测量当前帧两个端点之间的直线距离。
  5. 曲线用于沿创面边缘连续点选或拖动，完成后点击完成按钮计算曲线长度。
  6. 面积用于沿创面边界连续点选或拖动，完成后点击完成按钮计算封闭区域面积。
  7. 深度/剖面用于在目标区域放置剖面线，查看深度曲线和表面起伏。
  8. 完成测量后，可给测量添加名称或备注。
  9. 点击右下角测量列表，可以查看全部测量项，并跳转到对应测量所在的帧。
06

深度图、拍摄时间与 HASH 防伪信息

回看界面支持切换深度图叠加、拍摄时间和 HASH 校验信息。深度图用于帮助理解当前帧可用的深度数据；拍摄时间和 HASH 值用于辅助确认导出数据与原始记录是否一致。

07

备注与导入导出

应用支持病人、录像、测量三个层级的备注。录像备注可以记录某次随访或换药后的创面状态，例如“第三次换药后伤口状况”。

应用支持导出和导入兼容的数据包，用于电脑归档、离线备份或医生之间会诊传输。导出文件可能包含可识别患者身份的信息，用户需要自行选择安全、合规的保存或传输方式。

Designed for clinical follow-up, not casual snapshots.

为临床随访设计，不只是拍一张照片。

Each recording can include patient context, frame metadata, depth maps, camera information, measurements, notes, and exportable archives.

每次录制都可以包含患者信息、逐帧元数据、深度图、相机信息、测量结果、备注，以及可导出的归档数据包。

AR video and depth capture

AR 录像与深度采集

Capture color frames, depth data, camera intrinsics, transforms, and display mapping information for later review and measurement.

记录彩色图像、深度数据、相机内参、位姿变换和显示映射信息，为后续回看和测量保留依据。

Patient and record notes

患者与录像备注

Add notes at the patient, recording, and measurement levels to document wound history and dressing-change progress.

支持在患者、单次录像、单项测量三个层级添加备注，便于记录病因、换药进展和测量说明。

Frame-level measurements

单帧精细测量

Measure line length, curved edges, area, and depth profile on selected frames with visual overlays for review.

在选定帧上进行长度、曲线、面积和剖面测量，并通过可视化标注辅助复核。

Data package first.

以完整数据包为核心。

WoundTruth is built around local control and exportable records, so clinicians can archive cases or transfer them for consultation.

创视迹以本地控制和可导出档案为核心，方便医生归档病例，也方便会诊时传输数据。

Patient archive 患者档案 Name, patient ID, optional hospital and department, patient-level notes, and linked recordings. 包含姓名、患者 ID、可选医院与科室、患者层级备注，以及关联录像。
Recording package 录像数据包 Video frames, metadata, camera information, depth files, ruler calibration, and record notes. 包含视频帧、元数据、相机信息、深度文件、标尺校准和录像备注。
Measurement history 测量历史 Line, curve, area, and profile measurements can be reviewed, named, annotated, and jumped to from the playback timeline. 长度、曲线、面积和剖面测量可回看、命名、备注，并能从回放时间线快速跳转。
WoundTruth is a documentation and measurement aid. It is not intended to replace clinical judgment, diagnosis, or treatment decisions.
创视迹是临床记录与测量辅助工具，不能替代医生的诊断、判断或治疗决策。
